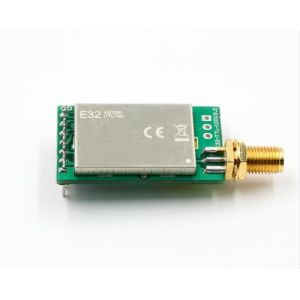

100mW Wireless Lora Module SX1276 868MHz Wireless Data Transmitter

  • 1
  • 2
  • 3

Brand Name : Lensen

Model Number : LS-LR100-868

Place of Origin : China

MOQ : 2pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 6000pcs/month

Delivery Time : 1-6 days

Packaging Details : standard carton

Power output : 100mW

Frequency : 868MHz

Chip : SX1276

Distance : 1-5km

Technology : Lora

Interface : TTL

Contact Now

100mW Wireless Lora Module Transceiver SX1276 868MHz Wireless Data Transmitter

Lora Long Range UART SX1276 868mhz 100mW SMA Antenna IoT uhf Wireless Transceiver Transmitter Receiver Module

100 mW wireless transceiver module with LoRa spread-spectrum technology, operates at 862~893MHz (Default: 868MHz), based on originally imported RFIC SX1276 from SEMTECH, transparent transmission is available, TTL level.

Electrical parameters
Frequency Band 862 - 893MHz Default: 868MHz, channel:32
Supply voltage 2.1 - 5.5V DC 5V (recommended)
Communication voltage Maximum 5.2V -
Transmitting power 20dBm Can be configured to 20, 17, 14, 10dBm
Air data rate 2.4kbps Can be configured to 0.3, 1.2, 2.4, 4.8, 9.6, 19.2 kbps
Standby current 4.0uA M1=1, M0=1 ( Mode 3 )
Transmitting current 120mA@20dBm ≥300mA
Receiving current 14mA Mode 0 or Mode 1

Sensitivity

-138dBm/0.3kbps Sensitivity has nothing to do with baud rate or timing
General parameters
Antenna type SMA-K 50Ω characteristic impedance
Operating temperature -40 ~ +85℃ -
Operating humidity 10% ~ 90% Relative humidity,No condensation
Storage temperature -40 ~ +125℃ -
Size 21*36mm -
Weight 6.7g Average weight
Connector 1*7*2.54mm Plug-in
Operation Range About 3000m Test condition: clear and open area& 20dBm, antenna gain:5dBi, height: 2m, air data rate: 2.4kbps
Communication interface UART 8N1, 8E1, 8O1,Eight kinds of UART baud rate, from 1200 to 115200 bps
Driving mode UART Can be configured to push-pull/high pull, open-drain
Transmitting length 512 bytes buffer 58 bytes per package
Receiving length 512 bytes buffer 58 bytes per package

Application:

SCADA

AMR (Automatic Meter Reading)

Camera control (PTZ)

Sports scoreboard control

Electronic signs and message boards

GPS fleet tracking

Security systems

Vending machine monitoring

Remote weather systems

Remote parking and gate access systems

Remote weigh scales

HVAC control

Remote pump station control

Homeland defense

Robotics and control

Wireless inventory control applications

Pivot irrigation

Airborne telemetry

Remote instrumentation

Wireless pressure and temperature sensors

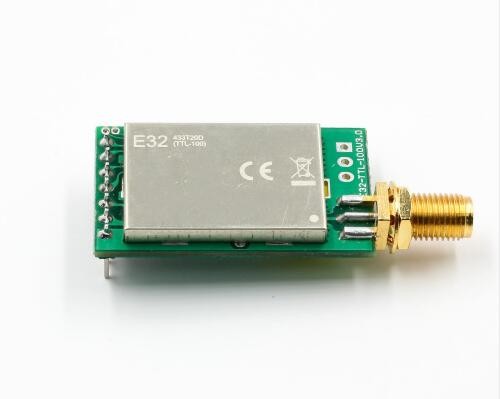

100mW Wireless Lora Module SX1276 868MHz Wireless Data Transmitter100mW Wireless Lora Module SX1276 868MHz Wireless Data Transmitter
