Underground Internet Controlled Sprinkler System Intelligent For Pulse Drive Solenoid
General introduction:
Automated irrigation becomes a trend with the development of smart agriculture. In order to send appropriate amount water in proper time to your farmland, we design this wireless irrigation system. It realized to Start/OFF your field solenoid valves wirelessly. You can control different field valves at control room. No need to go field and control each valves manually one by one. Wireless irrigation control system will really help you save a lot of time.

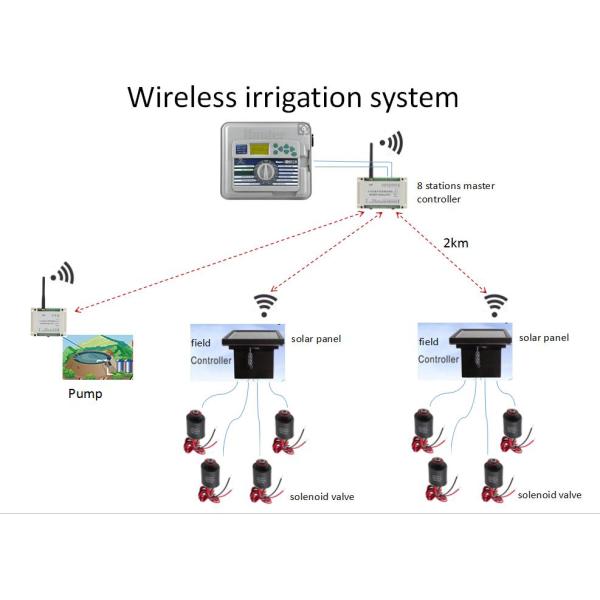

System includes
1. Master controller at Control center--to connect Hunter/Toro irrigation controller
2. Pump controller at pump station--to control pump ON/OFF
3. Solenoid valve controller at field--each controller connects 4 valves
Features
1. Control room, the wireless controller has 8 stations. We also provide 8-station expander in
order to connect 16 or 24 or 36 or 48 stations irrigation controller.
2. Field valve controller has 4 port. Each one can connect 4 valves. The controller use solar
power supply. It already has solar supply circuit on board.
3. At control room, the pump controller will turns pump on automatically if any one of the solenoid valve is ON. Switch off the pump if no valves is ON automatically.
4. At control room, you can automatically switch on any solenoid valve according the pre-setted
irrigation controller’s program.
5. Wireless connection, no need to operate pump and valve manually. Can do all at control room.
No need to run here and there any more. Save time and energy.
6. Main controller has LED indicator of feedback from pump side and valve controller board.
7. Control distance 2km or more at open area, no communication fee.
What included in this system
| 1 | Main controller |
| 2 | Main expander |
| 3 | Pump controller |
| 4 | Valve controller |
Parameter
1. Master-Main controller:
24V DC power supply
8 isolated inputs (24V AC or 24V DC), 1 reply output
can expand by 8-station
433MHz, 1W power output
Communication port: RS485
2. Master-Expander
24V DC power supply
8 isolated inputs (24V AC or 24V DC), no output
Communication port: RS485
3. Pump controller:
Power supply: 12V DC
1 digital dry input and 1 relay output
contact max load AC250V/5A,DC30V/5A
433MHz, 1W power output
Communication port: RS485
4. Valve controller:
12V DC power supply or solar panel power supply. Battery full charged: 13.6V
4 isolated pulse outputs, can control 4 solenoid valves separately
433MHz, 1W power output
How to connect master controller
About main controller’s DIP switch definition
How to connect expander
About Expander’s DIP switch definition

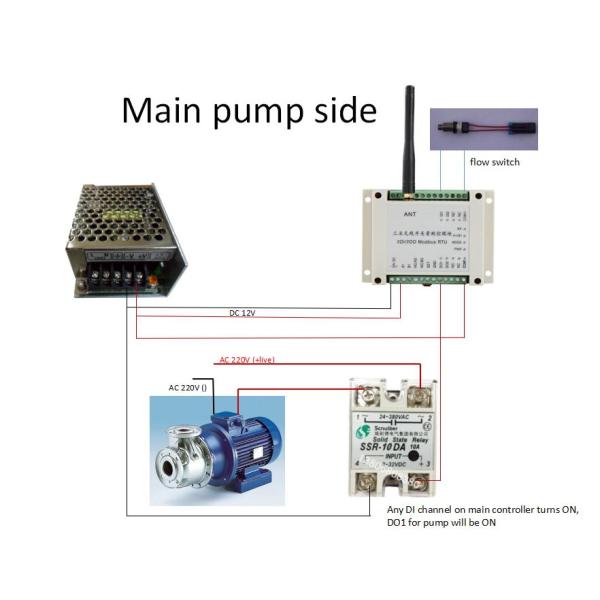

How to connect main pump
Pump controller DIP switch definition

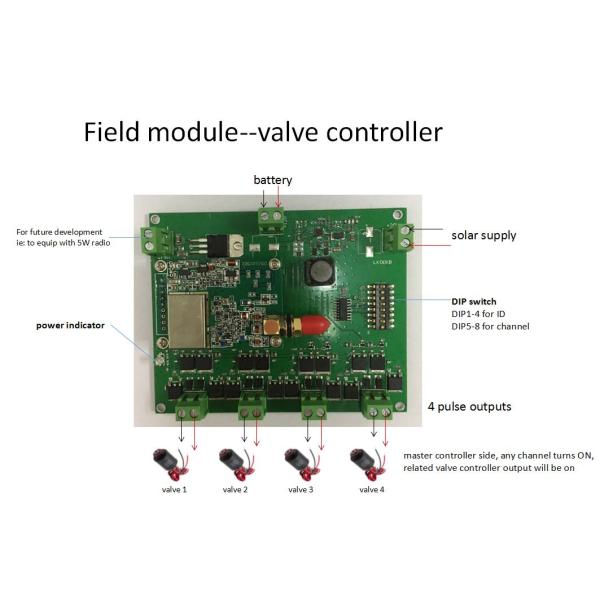

How to connect valve controller
Conclusion:
1. Please make sure all controllers in the same system setting with the same channel
2. One master to more slaves, please set different ID for slaves(valve controller)
3. Master side all COM- ports connect with irrigation controller’s C port
